Make sure all burner knobs / taps are on off position.
Switch off gas cylinder valve and remove the regulator unit from the cylinder.

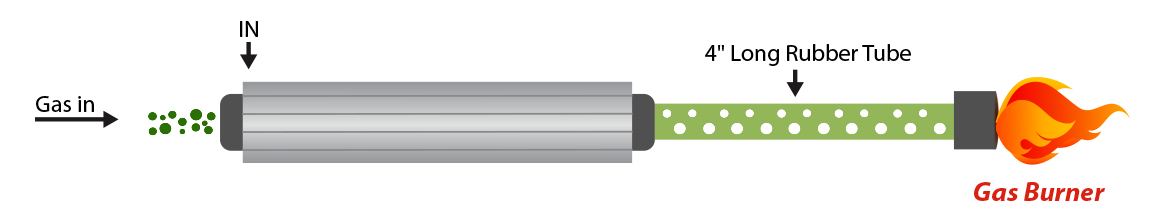

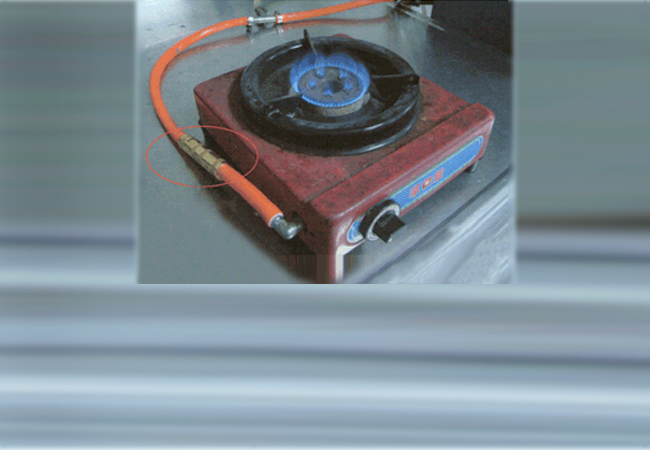

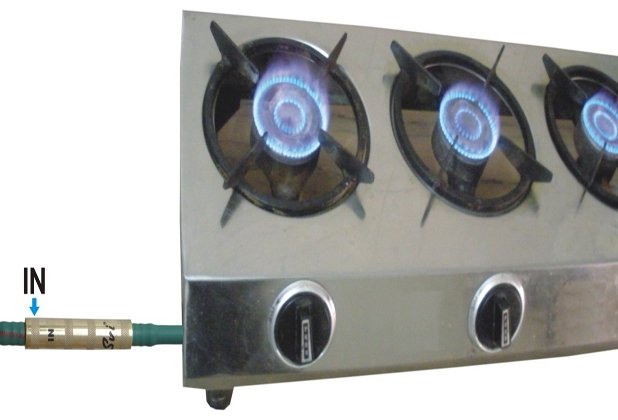

Carefully remove the rubber tube from the burner and fit the SVI gas saver end marked with “IN” letters.
Carefully fit the 4” long rubber tube with its one end connected to the gas saver and the other end connected to the burner.
Secure the rubber tube on both ends of gas saver.
Switch on the gas cylinder valve, Carefully fix the regulator back to the gas cylinder.
Ensure that there is no gas leakage. To make sure, check all the fitting ends by applying soap water solution. If bubbles occur then it‘s not securely fitted.
Congratulations! You have successfully installed your SVI gas saver, which can save up to 25% gas.
Note : Install STRICTLY as per the instructions provided.
Do NOT use the gas saver in case of any gas leakage is noticed after the installation
